Dual-system electric + gas operation. The Dual Charbroiler Pro E7KP uses gas for the cooking heat and electricity for its low-voltage monitoring system. The four gas burners provide 120,000 BTU/hr total heat output, while the electrical supply is used for the monitoring/control electronics. The electrical supply is specified as 120V / 60Hz / 1PH.
- System
- Electric + Gas
- Gas heat output
- 120,000 BTU/hr
- Gas burners
- 4
- Electrical supply
- 120V / 60Hz / 1PH
- Gas fuel
- Natural Gas / LP
- Size (WxDxH)
- 40" x 30" x 15"
- Weight
- 285 lbs
Technical specifications

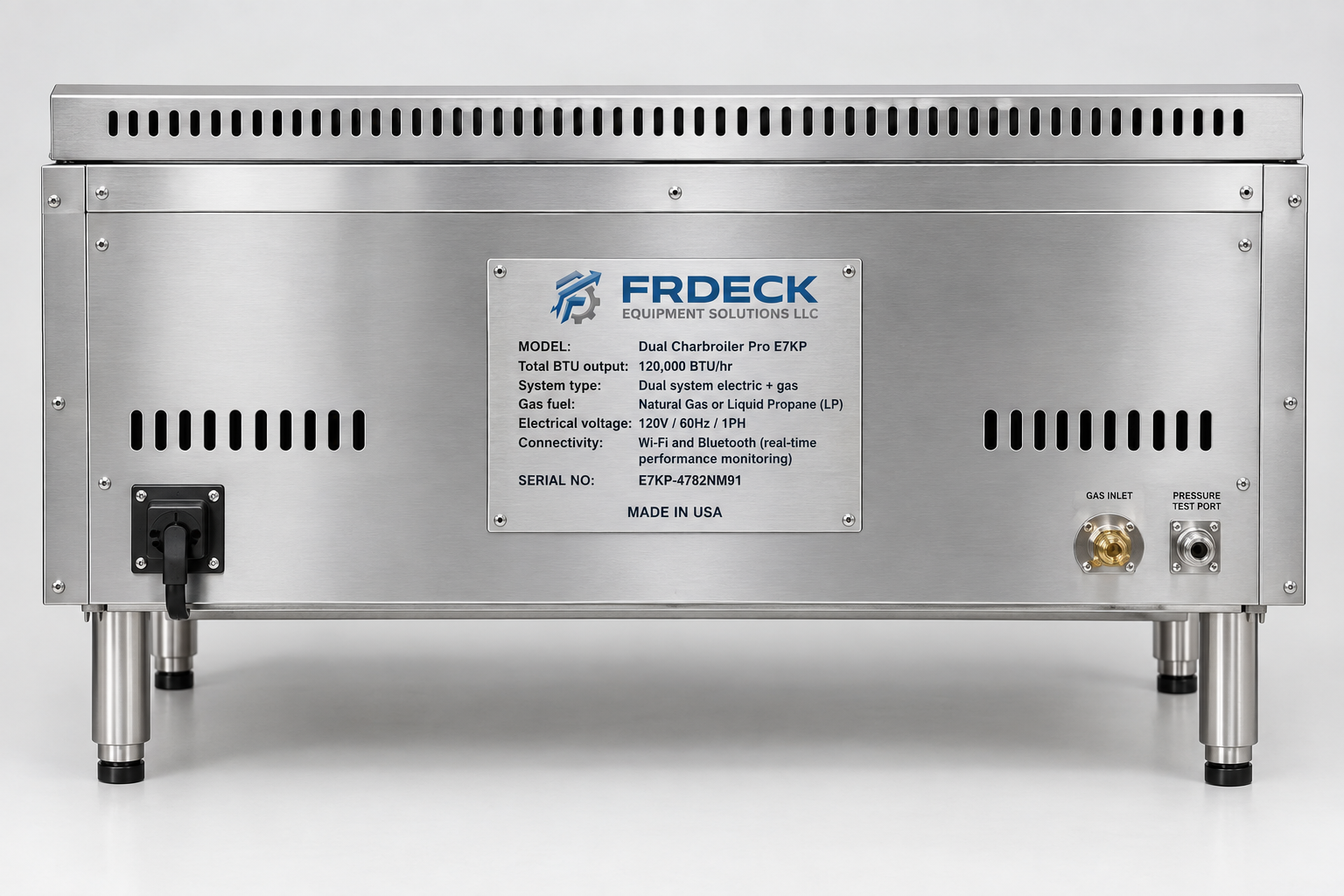

Dual-system specification: gas provides the cooking heat; electricity powers the low-voltage monitoring system. The electrical system is specified as 120V / 60Hz / 1PH. Designed and manufactured by Frdeck Equipment Solutions LLC, it includes built-in Wi-Fi and Bluetooth connectivity so you can monitor its performance in real time.
Performance
| Model | Dual Charbroiler Pro E7KP |
|---|---|
| System type | Dual system: electric + gas |
| Gas fuel | Natural Gas or Liquid Propane (LP) |
| Number of burners | 4 independent burners |
| Total BTU output | 120,000 BTU/hr |
| BTU per burner | 30,000 BTU |
| Cooking surface | Heavy-duty cast-iron grates |
| Cooking area | 40″ wide |
| Control system | Individual infinite control knobs (HI / MED / LO) |
Construction & Operation
| Grease management | Dual removable stainless-steel grease drawers |
|---|---|
| Construction | 304 stainless steel exterior & frame |
| Grate style | Reversible or standard cast-iron grates |
| Ignition | Standing pilot |
| Legs | Adjustable stainless-steel legs with non-slip feet |
| Electrical system | Low-voltage monitoring/control module powered by the 120V / 60Hz / 1PH supply. |
| Electrical voltage | 120V / 60Hz / 1PH |
| Electrical frequency / phase | 60 Hz / single phase (1PH) |
| Gas system | 4 gas burners, 120,000 BTU/hr total; Natural Gas or LP |
| Connectivity | Wi-Fi and Bluetooth (real-time performance monitoring) |
Size, Compliance & Coverage
| Overall dimensions | 40″ W × 30″ D × 15″ H |
|---|---|
| Shipping weight | 285 lbs |
| Certifications | NSF/ANSI and CSA |
| Configuration note | Specifications above describe the listed 40-inch configuration. |

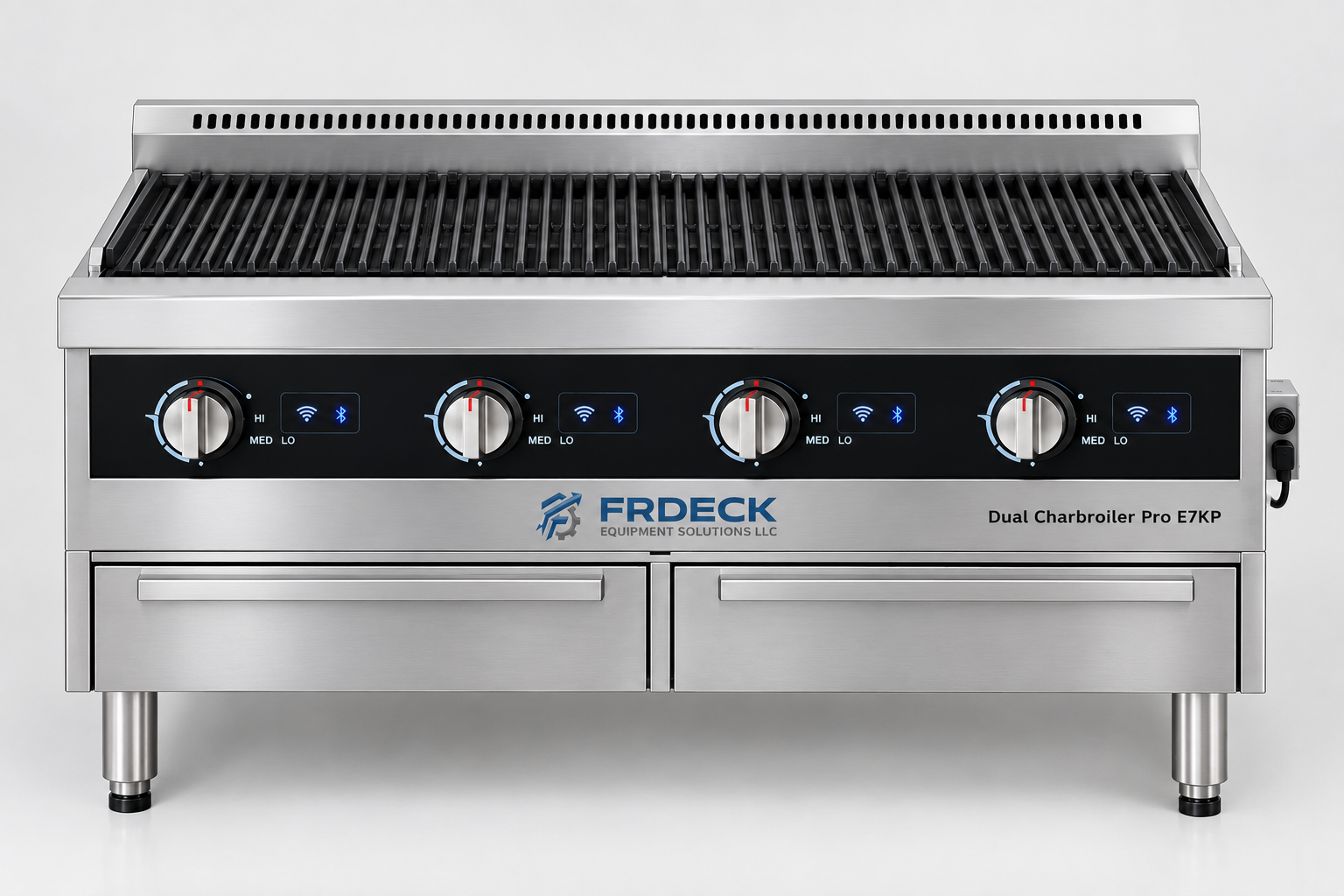

Key features
- Heavy-duty cast iron cooking grates for superior heat retention
- Four high-output gas burners with standing pilots; total gas input is 120,000 BTU/hr
- Adjustable manual controls for each burner
- Integrated grease management system with removable drawer
- Full-width drip tray for easy cleaning
- Stainless steel front, sides, and removable crumb tray
- 4" adjustable legs for leveling
- Electrical monitoring system with Wi-Fi and Bluetooth connectivity (120V / 60Hz / 1PH)
- NSF and CSA certified for commercial use
Where it works best
Kitchens and menus this equipment is built for.
Steakhouses and grill houses
Heavy cast iron grates leave clear sear marks on steaks and chops.
Burger and casual dining
Independent burner controls hold several heat zones across one line.
Seafood restaurants
Fish, shrimp and vegetables cook over the same radiant heat.
Hotels and institutions
Banquet, room-service and cafeteria grilling at volume.
Open kitchens and catering
A clean stainless front suits customer-facing cooking lines.
How pricing works
The Dual Charbroiler Pro E7KP is listed at $24,970 and is in stock. Your final quotation follows the specification you choose, so two units of the same model can price differently when the fuel, voltage, options or destination differ.
| Specification | On this model | How it affects your quote |
|---|---|---|
| Gas type | Natural Gas / LP Convertible | Gas is the cooking heat source. Specify Natural Gas or LP so the unit is configured for the intended fuel. |
| Gas heat output | 120,000 BTU/hr | The four gas burners provide the cooking heat. The burner load sets gas supply sizing and the exhaust hood your kitchen needs. |
| Electrical supply | 120V / 60Hz / 1-phase electrical monitoring/control system | The electrical system is specified as 120V / 60Hz / 1PH; use the correct dedicated circuit and follow local electrical codes. |
| Burners and width | 4 burners, 40 inches | Burner count and cooking width define this model. Need a different width? Ask us to quote the fit for your line. |
| Quantity | Per unit | Several units for one line or several sites are quoted together. |
| Delivery | 285 lbs | Freight depends on destination and unloading conditions, and appears as its own line. |
Send your requirements
Tell us the gas fuel available at your site, the electrical voltage available, the quantity you need and where it ships. The electrical supply is 120V / 60Hz / 1PH.
Review an itemized quote
The unit, any options you choose and delivery appear as separate lines, so quotes are easy to compare.
Approve and schedule
Confirm the quote and we coordinate delivery with you.
Before you order
Check these against your kitchen so the unit you quote is the unit that fits.
- Confirm Natural Gas or LP and have your installer check the gas supply line size and pressure for the 120,000 BTU/hr load.
- Confirm the electrical supply voltage for the monitoring system before installation; do not assume a voltage that is not listed on the equipment rating plate.
- Plan an exhaust hood above the charbroiler that matches the 120,000 BTU load.
- Allow counter or stand space of 40" x 30", with a 15" cooking height.
- Check grease drawer access and plan a regular cleaning routine.
Specifications are subject to change. Always follow the user manual and your local codes for installation, ventilation and utility connections, and have a licensed professional connect gas, electrical and water services.
Frequently Asked Questions
How much does the Dual Charbroiler Pro E7KP cost, and is it in stock?
The Dual Charbroiler Pro E7KP is priced at $24,970 (USD) and is currently in stock. Options, quantity and delivery to your location may change the final quotation, so use Request a quote for an exact total.
What are the model number and SKU of this charbroiler?
The product is the Dual Charbroiler Pro E7KP. Its SKU is OM-AF69-650 and its OEM model reference is Dual Charbroiler Pro E7KP-4782NM91.
How much heat does the Dual Charbroiler Pro E7KP produce?
It has four independent gas burners rated at 30,000 BTU each, for 120,000 BTU/hr in total. Every burner has its own control knob.
Which fuels does it use, and does it need electricity?
It runs on natural gas or liquid propane. A small electrical supply, listed as 120V / 60Hz / single phase, powers the monitoring electronics, which include Wi-Fi and Bluetooth.
What are the size and weight of the unit?
The 40-inch configuration measures 40 in wide, 30 in deep and 15 in high, and the shipping weight is 285 lbs.
Which certifications does it carry?
The listing shows NSF/ANSI and CSA certifications.
How do I get a price for the Dual Charbroiler Pro E7KP?
The Dual Charbroiler Pro E7KP is listed at $24,970. Use the Request a quote button on this page for a final total that includes any options, quantity and delivery.
